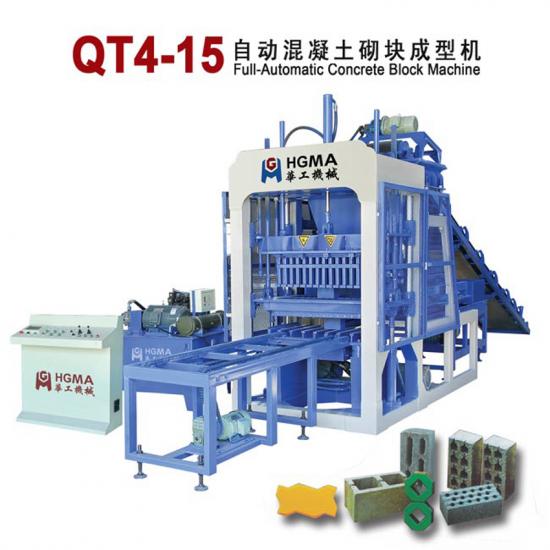

HGMA QT4-15 Full Automatic Concrete Block Making Machine
1、The electrical system are operated by PLC and equip with input date devices, the control system includes the advanced logical safety lock and trouble-diagnosis device that will point the trouble location promptly.
2、The machine is made of import some touch screen, hydraulic components to use imported components, and the high rate of valve and dynamic be based on different steps to adjust the precise control over key components of body movements, with high accuracy and high quality castings and special welding technology and materials to make rigid good. Stand vibration, long longevity.
3、 The machine adopts four-lead the four clubs ensures the guide the way down and die exactly, the clearing led feeding device, equally fast molding cycles, material and production efficiency and quality of the blocks on a solid strength, the exact size.
4、Adopt technology of the electromechanical integration, Make the working cyclic process of the equipment unanimous ,thus forming a product of stability and waste rate is low.
5、Multifunction in one machine .Changing molds can produce various kinds of specification porous bricks, solid bricks, hollow bricks, with a double material-feeding machine can produce all kinds of the colored road bricks, and slope protection bricks etc.
Main Technical Parameters
| Cycle Time | 15-20(s) | Total Power | 22.9(kw) | |||||
| Vibration Type | hydraulic vibration | Motor Frequency | 50hz | |||||
| Machine Dimension | 8200*4350*2700(mm) | Pallet Size | 850×560×20(mm) | |||||
| Vibration Force | 58kn | Gross Weight | 6200kg | |||||
Brick Output
| Brick | Sizes | Output/ mould | Output/Shift(8hours) | ||||||
| hollow Blocks | 390x190x190mm | 6 | 21,600-28,800 | ||||||
| Porous bricks | 240x115x90mm | 15 | 25,200-30,240 | ||||||
|
Interlocking block |
200x100x60mm | 31 | 43,200-57,600 | ||||||
| Solid bricks | 240x115x53mm | 30 | 43,200-57,600 | ||||||
