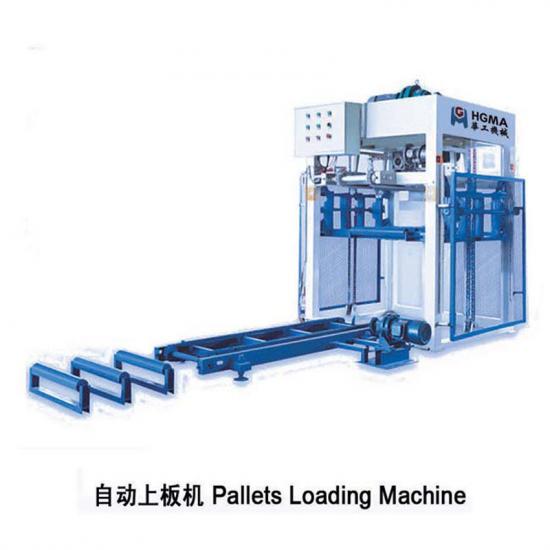

Automatic Pallets Loading Machine

Pallets Loader,Automatic Pallets Loading Machine,HGM automatic pallets feeding machine adopts adjustable pallet frame structure, all models are suitable for brick machine pallet.

Share To :
  • Product Details

1. HGM automatic pallets feeding machine adopts adjustable pallet frame structure, all models are suitable for brick machine pallet.

2. Full hydraulic system, sent to board more convenient, more simple and more flexible.

3.Imported PLC computer program control: the forced board, manual feed plate. Brick, sent to board aircraft synchronized, continuous work. Truly production, sent to board, lift-automatic synchronization. Fully automated, intelligent, humane, safe and efficient.

Main features:

The irregular pallets in the production site are automatically arranged and aligned, and then automatically sent to the plate feeder one by one, and then put into the block production line for recycling.
The matching power is less than 6.7kw
Overall dimension: 2940x2550x2500 mm
The space of parallel plate is 1350 mm
Maximum height of stack plate: 1m
The maximum weight of plate stack is less than 3 tons
Suitable for pallet size 1100x950x20 mm
