Vibration box of block machine parts

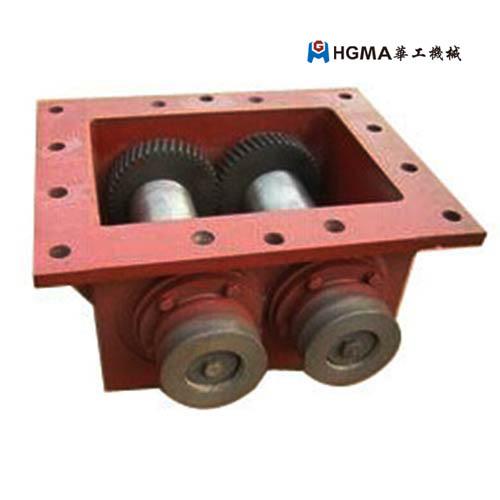

The vibration box of the block forming machine includes a vibration box fixed on the vibration platform. The box is equipped with two main shafts and two transmission shafts. One end of the two main shafts passes through the box, and the end of the two main shafts is equipped with a pulley. The main shaft and the transmission shaft are each equipped with a synchronous gear and engage with each other. The rear end of the two main shafts is equipped with a flange plate, The eccentric blocks are fixed on the two end faces of the synchronous gear and flange plate on the main shaft.
When working, the motor or hydraulic motor drives the two main shafts of the vibration box to rotate synchronously and reversely through the pulley, so as to realize the vertical and directional vibration of the vibration platform of the molding machine and the mold box. It has the advantages of large eccentricity, small starting resistance distance, fast vibration starting, short vibration starting and stopping time, and large excitation force.
Leave A MessageThe manufacturer produces various specifications of brick machine mold, hollow brick mold, square pavement brick mold, curb stone mold, etc
Hydraulic electromagnetic directional valve series for block making machine, superposition valve series, pressure control valve series.
The manufacturer produces various specifications of brick machine mold, hollow brick mold, square pavement brick mold, curb stone mold, etc
concrete block machine spare parts one-way Restrictor valve with free flow in one direction and variable restriction of flow in the other.
Hydraulic electromagnetic directional valve series for block making machine, superposition valve series, pressure control valve series.
The vibrating motor of the brick machine has strong exciting force, which can screen and separate materials and increase the density of cement bricks
Provide various specifications of block machine hydraulic system for various brands of concrete brick machines. The whole hydraulic system has high pressure and is stable with imported components
Siemens PLC is a modular micro PLC system, which can meet the performance requirements of medium and low end. Modular, fanless design, easy to realize distributed structure and convenient operation make SIMATIC S7-300 an economic and user-friendly solution for various tasks in medium and low end applications.
