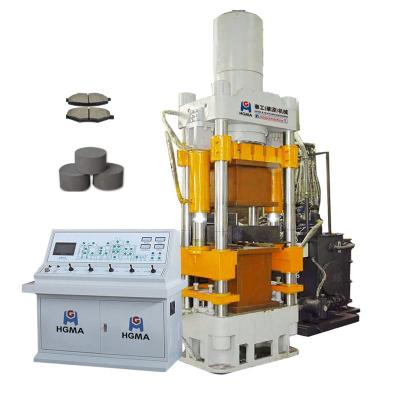

The powder forming four column hydraulic press is economical and practical. The hydraulic control adopts the integrated system of plug-in setting valve to reduce the discharge point. It has reliable movement, durability and long service life. The first is the constant pressure realization and the secondary development technology of constant pressure program, which has the function of ensuring the differential pressure delay. The stroke of working pressure can be adjusted within the specified range. The centralized control of buttons can realize manual There are three operation forms: semi-automatic and automatic.
|
Specification |
Unit |
400T |
|
|
Nominal force |
KN |
4000 |
|
|
Max. pressure of liquid |
MPa |
25 |
|
|
Stroke of slider |
mm |
500 |
|
|
Max. opening height |
mm |
1400 |
|
|
Working table size |
mm*mm |
1000x800 |
|
|
Speed of slider |
Descent speed |
mm/s |
340 |
|
Working speed |
mm/s |
16-24 |
|
|
Return speed |
mm/s |
220 |
|
|
Motor power |
KW |
22x2 |
|
Leave A Message150T Paving Brick Making Machine，HDY1500 hydraulic press block machine,concrete block making machine is specialized in producing concrete road edge stone, concrete hollow block, cement brick, color brick, paving brick, with high pressure, fast forming speed, high density and stable performance
300T Paving Brick Making Machine，Road edge stone brick machine is specialized in producing concrete road edge stone, concrete hollow block, cement brick, color brick, paving brick, with high pressure, fast forming speed, high density and stable performance
600T Brick Making Machine，HDY600 type automatic bin-direction hydraulic molding machine, consists of host machine,electric appliance, control system, hydraulic system, pneumatic system, multifunctional conveyor system, stacking system, feeding unit into a fully automatic production line.
800T Paving Brick Making Machine,hydraulic press block machine,concrete block making machine,
HSY800 block making machine,Double hydraulic press block machine,concrete block making machine,
1000T hydraulic press block machinee brick making machine is the production of fly ash autoclaved brick main equipment, fly ash autoclaved brick is fly ash or other slag or lime as raw materials, add lime, gypsum and aggregate, the embryo material preparation, pressing molding, high-efficiency steam Conservation and other technology made.

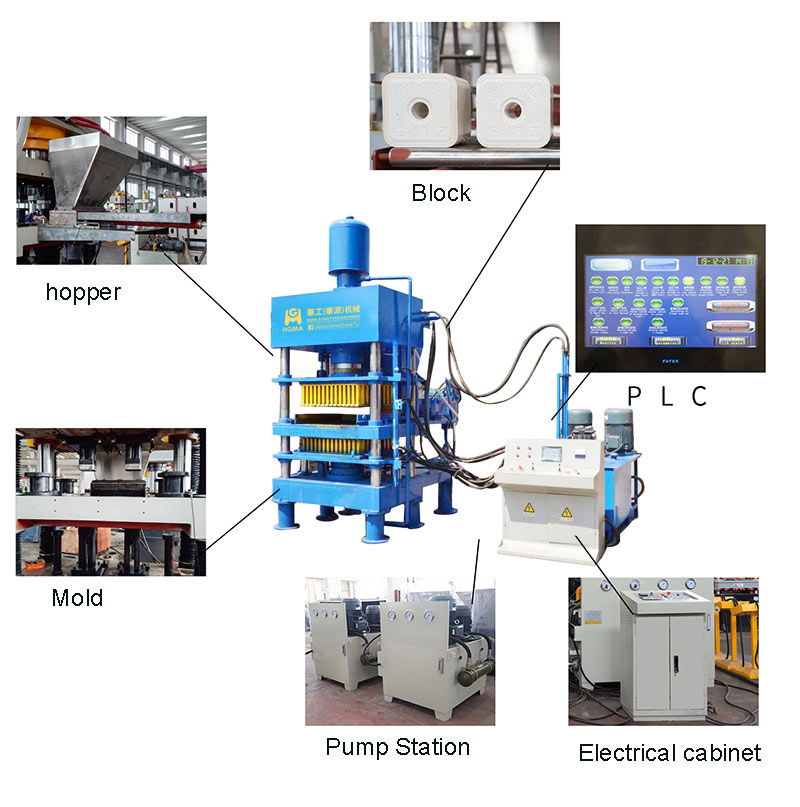

The hydraulic system of this machine includes motors, oil pumps, control valve manifolds, oil tanks and other systems and various connecting pipelines. The pipelines of the hydraulic system are all connected by high-pressure flanges to avoid leakage of hydraulic oil. All oil pipes are pickled before welding, and then after welding slag, deburring and secondary pickling to ensure the cleanliness of the hydraulic pipeline.
The vehicle mounted brick making machine has the comprehensive function of mixing brick making and forming. Two molds and two operation platforms can produce two bricks at a time. The hydraulic cooling system is controlled by the temperature control switch and operates automatically according to the hydraulic oil temperature to reduce energy consumption. The finished product molding is driven by the hydraulic system and the brick making is completed by pressure.
