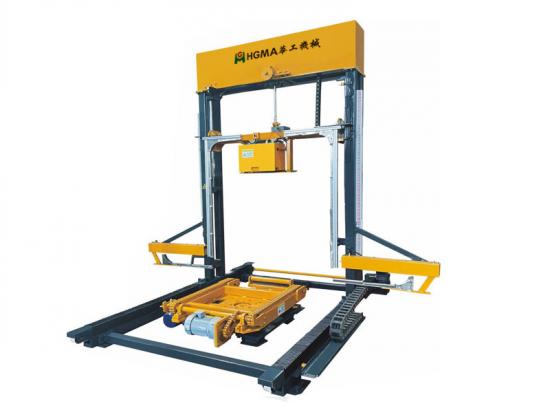

Cement brick automatic baler applicable to industry, brick and tile industry, packaging industry) The machine head is on the top, the whole machine is movable, and the belt can be threaded at any height
|
TECHNICAL SPECIFICATIONS |
|||
|
Equipment Specifications |
3900x2280x2700(mm)(WxLxH) |
welding strength |
96% of the master tape (80% of the national standard) |
|
power |
4.9Kw |
Strap material |
Plastic steel (PET) packing belt |
|
Maximum tightening force |
3500N (can be adjusted arbitrarily) |
Packing belt specification |
Width (12-16mm) x thickness (0.5-0.8mm) |
|
Threading speed |
2-4.2m/s (adjustable) |
packing width |
1.2m(length)x1.2m(width), can be customized |
|
welding speed |
0.3-1.5/sec (adjustable) |
packing height |
0.5m-1.6m (adjustable), can be customized |
|
Welding method |
High Frequency Friction (Pneumatic/Electric) |
||
Leave A MessageAutomatic bricks collecting product line，concrete block stacker machine,cement brick palletizing machine
The intelligent full-automatic production line for mother and child cars is an intelligent full-automatic production line upgraded and improved by our company on the basis of the original chain conveying shuttle car production line.
automatic cantilever winding film packaging machine
cement brick automatic packing machine applicable to industry, brick and tile industry, packaging industry According to the customer's industry classification, brick type, output, packaging volume and other needs, as well as the actual situation of the workshop, we can provide you with a customized fully automatic packaging design scheme.
The automatic brick soaking machine is controlled by a PLC controller, which adjusts different soaking times for different bricks. Good for palletizing
The automatic line for handling and maintenance solves the labor and fuel consumption problems of forklift truck transfer in the follow-up process of the simple block brick production line.
automatic cantilever winding film packaging machine TECHNICAL SPECIFICATIONS Package Size (500-1200)mmx(500-1200)x2200mm(LxWxH) Lifting parts Chain guide rail lifting mechanism, the lifting speed can be adjusted by frequency conversion Cantilever speed 0-20RPM adjustable Conveyor system Conveyor line height: 400mm, speed: 8-15mm, bearing capacity: 2000kg Packaging efficiency ≥25 Torr/h Control System PLC control, adjustable parameters, adjustable film length, automatic sensing of cargo size Membrane system Electric pre-stretching film, the stretching ratio can reach 250%, and the speed can be adjusted by frequency conversion Motor Power Cantilever: 1.1kw; Formwork: 0.37kw; Lifting parts: 0.37kw, top film: 0.37kw Automatic film breaking device Automatic clamping and cutting of the film without any tailing, completely automatic completion by no one power supply 4KVA/AC380V/50Hz, 3PH/N/PE top membrane PE/PVC film, width 1800mm, diameter 100-300mm, height 30-100mm Gas source 0.4-0.6mpa, 350NL/min Stretch film LLDPE stretch film, width: 1800mm, thickness: 20-35mm Equipment size 4500x2200x3500mm(LxWxH)(According to actual situation)
The brick clamping forklift can efficiently clamp all kinds of cement bricks, and is widely used in palletless handling, stacking and loading operations of aerated concrete, autoclaved bricks, sintered bricks, unburned bricks, concrete prefabricated parts and other industries.
