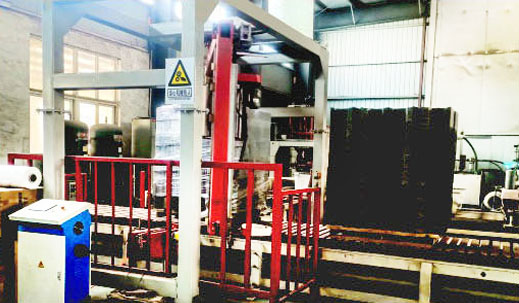

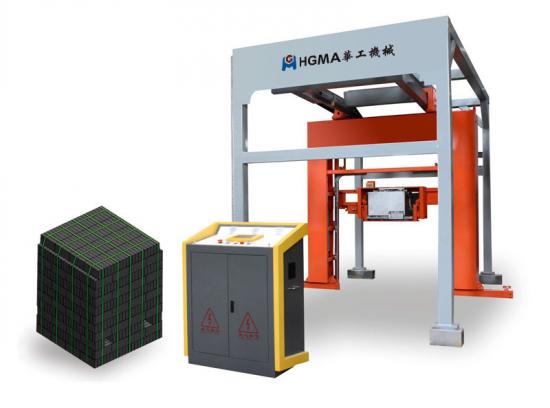

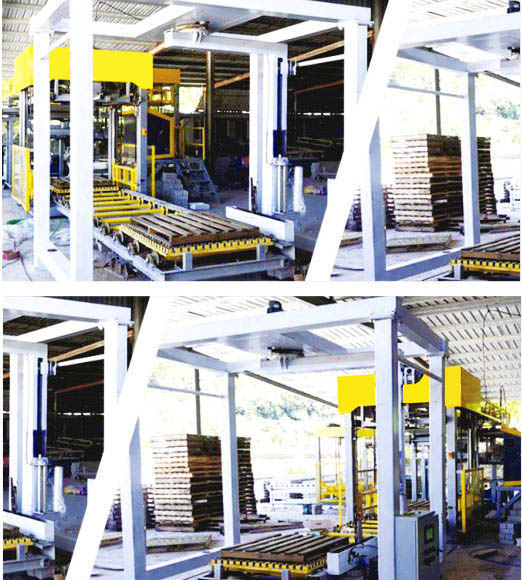

automatic cantilever winding film packaging machine
|
TECHNICAL SPECIFICATIONS |
|||
|
Package Size |
(500-1200)mmx(500-1200)x2200mm(LxWxH) |
Lifting parts |
Chain guide rail lifting mechanism, the lifting speed can be adjusted by frequency conversion |
|
Cantilever speed |
0-20RPM adjustable |
Conveyor system |
Conveyor line height: 400mm, speed: 8-15mm, bearing capacity: 2000kg |
|
Packaging efficiency |
≥25 Torr/h |
Control System |
PLC control, adjustable parameters, adjustable film length, automatic sensing of cargo size |
|
Membrane system |
Electric pre-stretching film, the stretching ratio can reach 250%, and the speed can be adjusted by frequency conversion |
Motor Power |
Cantilever: 1.1kw; Formwork: 0.37kw; Lifting parts: 0.37kw, top film: 0.37kw |
|
Automatic film breaking device |
Automatic clamping and cutting of the film without any tailing, completely automatic completion by no one |
power supply |
4KVA/AC380V/50Hz, 3PH/N/PE |
|
top membrane |
PE/PVC film, width 1800mm, diameter 100-300mm, height 30-100mm |
Gas source |
0.4-0.6mpa, 350NL/min |
|
Stretch film |
LLDPE stretch film, width: 1800mm, thickness: 20-35mm |
Equipment size |
4500x2200x3500mm(LxWxH)(According to actual situation) |
